Air Flow up to 5,500 l / min

Fastening by Means of Flange, Thread, or Slip Fit Connection

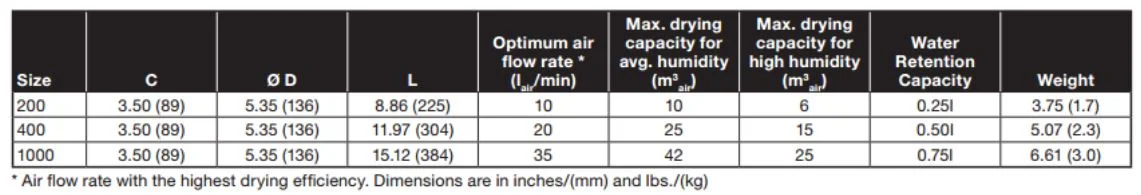

Installation Sizes: 200 - 400 - 1000

Two Different Desiccants Used


HYDAC Desiccant Air Breather / Tank Breather Dryer - for extended service life by removing moisture from air entering...

  • Fuel Tanks

  • Hydraulics

  • Gear Boxes

  • Turbines

  • Etc.

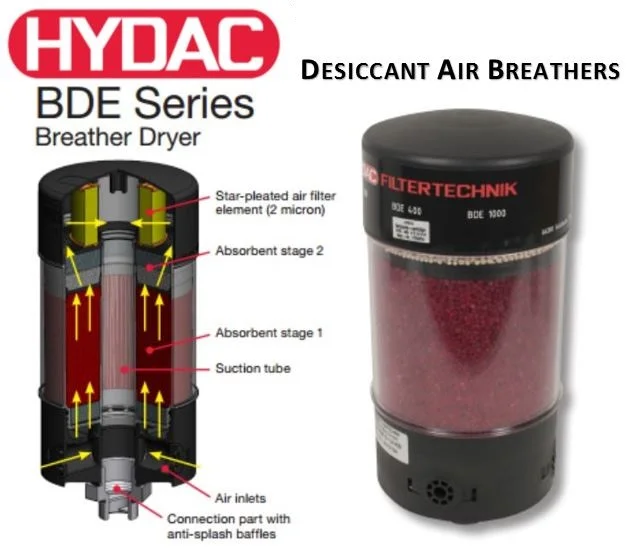

  • 2-Stage Absorbent Filling

  • Distribution of flow by special design of the inner components

  • Star-pleated air filer element reduces/prevents dirt and dust ingress into tank

  • Integrated anti-splash tool to protect the absorbent from oil contamination

  • Replacement Cartridges

  • Color Indication (When Max Absorption is Reached – Silica Gel Turns from Red to Yellow)

  • Optional Visual Indicator


  • Extending the life cycle of lube oil

  • Minimizing component wear, down time and repairs due to moisture

  • Minimizing oil oxidation, additive depletion, freezing due to moisture

  • Minimizing corrosion

  • Extending oil filter life
